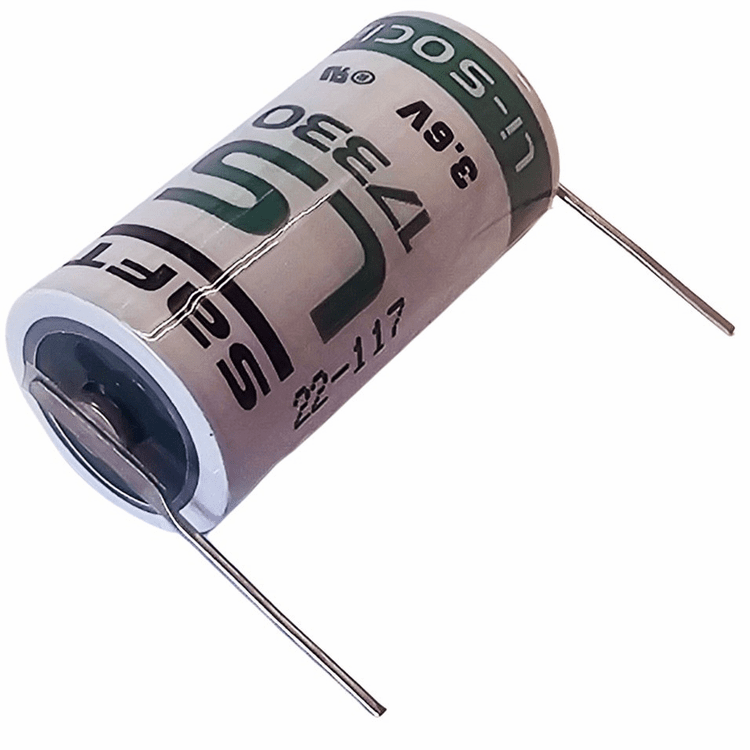

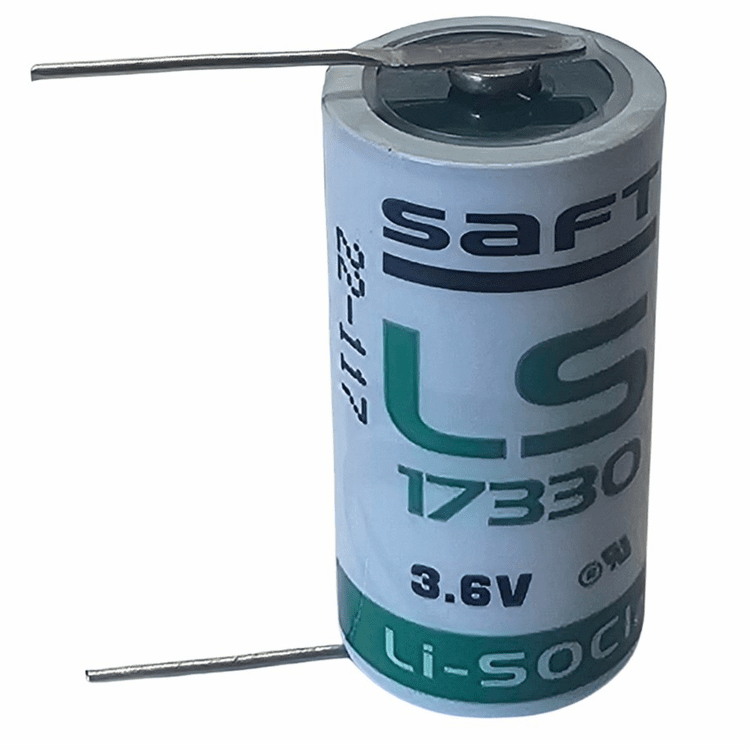

SAFT LS17330
3.6-Volt 2100mah (2.1Ah) Lithium-thionyl chloride (Li-SOCl2) battery
2-Pin PC Board Radial Solder Pins
Part #:LS17330-PINS
Price: $9.3
| STOCKED ITEM, USUALLY SHIPS SAME DAY (M-F cut off 12:00pm MST) |
|---|
| Bulk Pricing |
| 6 or more for $8.45each |
| 12 or more for $7.75each |
| 24 or more for $7.15each |
| 48 or more for $6.64each |
| SPECIFICATIONS- | |
| Manufacturer | SAFT |
|---|---|
| Part Number | LS17330-PINS |
| Brand | SAFT |
| Model | LS17330-PINS |
| Volts | 3.6 |
Capacity | 2100mAh (2.10Ah) |
| Chemistry | Lithium-thionyl chloride (Li-SOCl2) |
| Category | Lithium Battery, Primary Non-Rechargeable |
| Dimensions | Max Diameter: 16.5mm Max Height 33.4mm |
| Contacts | PINS |
REPLACES-
LST17330, ER17/33, Hawker Eternacell T32/41, T32/51, T32/BAA1, T32/8AA
FEATURES-
- High operating voltage, stable during most of the application lifetime
- Highest energy density among primary lithium chemistries
- Lowest self-discharge for extended shelf and operating life
- High pulse capability, thanks to well-controlled passivation with limited voltage delay
- Excellent reliability over extended operating life
- 20 year+ design with best quality components and materials
- Wide operating temperature range, matching all environment conditions
- Up to 40 years of mass production, with fully automated process
- Redundant production lines, to optimize supply chain efficiency and mitigate industrial risk
- Low magnetic signature
