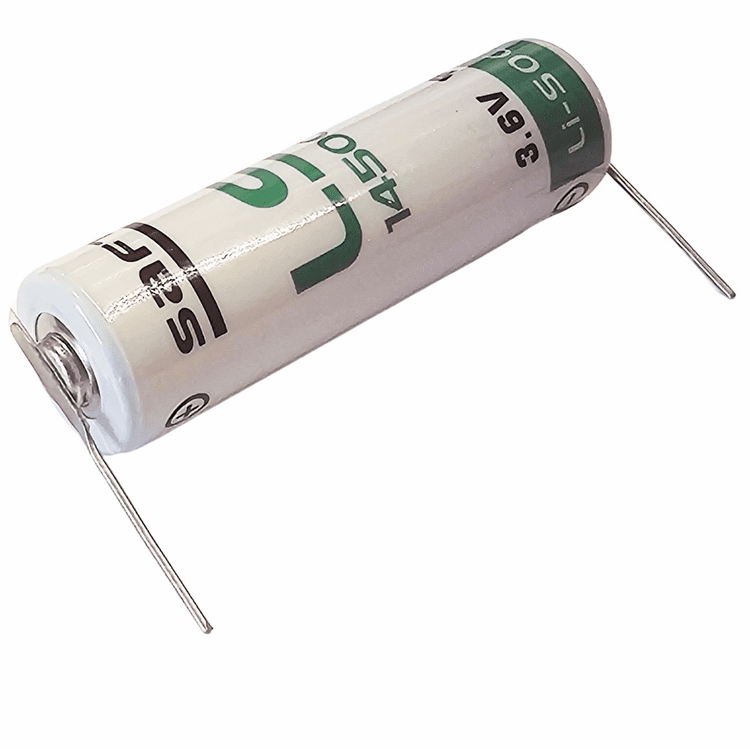

SAFT LS14500


3.6-Volt 2600mah (2.6Ah) Lithium-thionyl chloride (Li-SOCl2) battery
2-Pin PC Board Radial Solder Pins
Part #:LS14500-PINS

Price: $7.7

STOCKED ITEM, USUALLY SHIPS SAME DAY (M-F cut off 12:00pm MST)
Bulk Pricing
6 or more for $7.00each
12 or more for $6.42each
24 or more for $5.92each
48 or more for $5.50each
SPECIFICATIONS-
ManufacturerSAFT
Part NumberLS14500-PINS
BrandSAFT
ModelLS14500-PINS
Volts3.6
Capacity
2600mAh (2.60Ah)
ChemistryLithium-thionyl chloride (Li-SOCl2)
CategoryLithium Battery, Primary Non-Rechargeable
DimensionsMax Diameter: 14.55mm
Max Height 50.3mm
ContactsPINS

REPLACES-


Tab Style Specific Part Numbers

CN

Cell only Specific Part Numbers

104186-001, 15-5104-21000, 1770-XY, 3B64, 3B940, 418-0042, 60-0515-000, 6135-01-301-8776, 6630-U1, 6ES5-980-0AE11, 6ES59800AE11, 6ES7-971-0BA00, 6ES79710BA00, 8KK504, 94060101, 94112601, 96686102, 96686102-batt, 96726402, C0304, ER6AA, ER6H, LS14500, LS6, LTC-17C, LTC17C, T06/41, T06/51, TL-5104, TL-5104/S, TL2100/S, TL4903, TL4903S, TL5104, TL5104/S, XL-060F, Y16451001


FEATURES-


  • High operating voltage, stable during most of the application lifetime
  • Highest energy density among primary lithium chemistries
  • Lowest self-discharge for extended shelf and operating life
  • High pulse capability, thanks to well-controlled passivation with limited voltage delay
  • Excellent reliability over extended operating life
  • 20 year+ design with best quality components and materials
  • Wide operating temperature range, matching all environment conditions
  • Up to 40 years of mass production, with fully automated process
  • Redundant production lines, to optimize supply chain efficiency and mitigate industrial risk
  • Low magnetic signature
