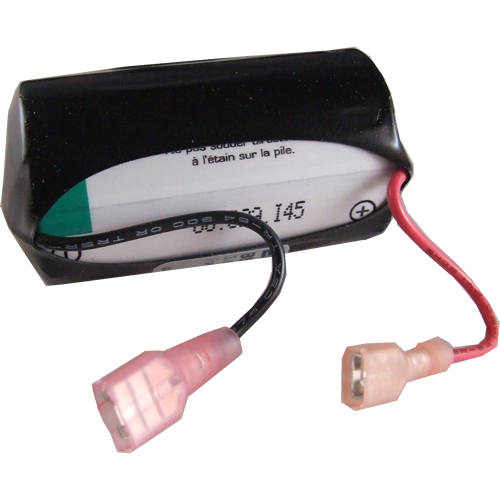

Allen Bradley B9500T Replacement
3.6 Volts 16500mah Lithium Battery
Wire Leads with Faston (+ F1) (- F2)
PLC Programmable Logic Controller Battery
Assembled by Battery Specialists using Saft LS33600

Allen Bradley B9500T, for 1775, PLC-3 PLC Programmable Logic Controller Battery

Part #: B9500T
Qty:
Price: $26.95
STOCKED ITEM
USUALLY SHIPS SAME DAY
If ordered by 1:30pm MST

Quantity Pricing:
12 for $25.40ea

PLC Battery
This is a 1 cell lithium battery designed to work in Allen Bradley 1775, PLC-3 and Modicon 484, 584 series programmable logic controllers and industrial computers.
For battery cell replacement in Modicon AS-5284-001.
Low self discharge rate gives this cell a 10 year shelf life.
Stable voltage and broad temperature range (-60 to +85C).
High energy, high reliability for memory backup applications.



SPECIFICATIONS-
Manufacturer: Saft
Part Number: B9500T
Brand: Allen Bradley
Model: 1770-XR, AS-5284-001, AS5284001, MA-0147-000, MA-0147-001, MA0147000, MA0147001
Volts: 3.6
Chemistry: Lithium
Size: D
Category: PLC Programmable Logic Controller Battery
Dimensions: DIAMETER: 1.32in
HEIGHT: 2.42in
Warranty: DOA - We pretest every PLC battery for proper voltage before shipping.
Contacts: Wire Leads with Faston (+ F1) (- F2)

CELL USED SPECIFICATIONS-
Manufacturer: SAFT
Part Number: LS 33600
Brand: SAFT
Model: LS 33600-BA
Volts: 3.6
Chemistry: Lithium-thionyl chloride (Li-SOCl2)
Size: D
Category: Non-Rechargeable Lithium Cell for Industrial and Memory Applications
Dimensions: Max Diameter: 33.4mm
Max Height 61.6mm
Operating Temp. Range: -60C to +85C
Max. recom. Cont. Current: 250mA
Warranty: DOA
ANSI: D, R20, UM1
IEC: ER20
Contacts: Button Top Pressure Contacts





FOR USE WITH-

This is a 1 cell lithium battery designed to work in Allen Bradley 1775, PLC-3 and Modicon 484, 584 series programmable logic controllers and industrial computers. For battery cell replacement in Modicon AS-5284-001.


REPLACES-

1770-XR, AS-5284-001, AS5284001, MA-0147-000, MA-0147-001, MA0147000, MA0147001


ALLEN BRADLEY
1775 Series, 1775-L3, 1775-L4, 1775-ME4 Series A, 1775-ME8 Series A, 1775-MEA Series B, 1775-MED Series B, 1775-MEF Series A, 1775-MS4 Series A, 1775-MS8 Series A, 1775-MSA Series B, 1775-MSD Series B, PLC-3 Memory Module, PLC-3 Series, PLC-3/10, 1770-XR

MODICON
484 Series, 506P-xxx, 509P-xxx Series, 584 Series, AS-506P-xxx, AS-509P-xxx Series, AS-5284-001 (replacement cells), MA-0147-000, MA-0147-001
